Features
Features
Light weight clamp design made of black anodized aluminum
Rigid 3/8 in Dia stainless steel indicator posts provided in three lengths 5 in, 7-7/16 in and 9 in
Extension plate allows for added radial clearance
Heavy duty roller chain accommodates upto a 7-1/2 in Dia shaft
Excess roller chain can be secured to the side of the chain clamp
A second shaft alignment clamp can be mounted across from the first clamp to act as a vertical ''target'' for face alignment
System is capable of addressing radial and angular misalignment problems and can be set up within minutes
V-Shaped jaw
Specifications
Specifications
Package Quantity-1
Package Description-1/PK
UPC-049659671537
Package Height-3.5 in
Package Length-16 in
Package Volume-0
Package Width-12.5 in
Package Weight-6.1 lb
Manufacturer Name-L.S. Starrett
Manufacturer Part Number:S668CZ
Brand Name-Starrett®

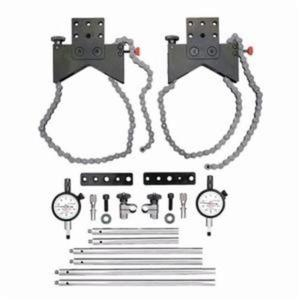

Includes
Includes
(2) PT27981 5 in, (2) 657G 7-7/16 in, (2) PT27982 9 in Posts, (2) 668 Chain Clamp, (2) NO 81-141J Indicator, (2) NO 657Y Indicator Attachment, (2) NO PT18724 Snug and (2) PT99529 Extension Plate with Fitted Case
Application
Application
For alignment of motors, pumps and compressors
Standards
Standards
Standards/Approvals-California Provision: WARNING: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm
Warranty-
