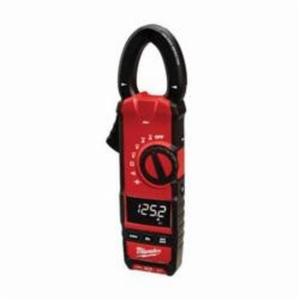

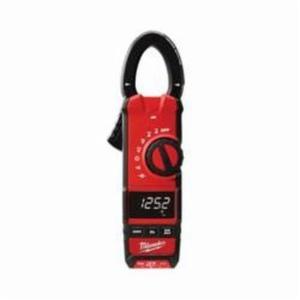

MILWAUKEE 2237-20 CLAMP METER

Measures up to 600 A AC, large 1.3 in jaw opening

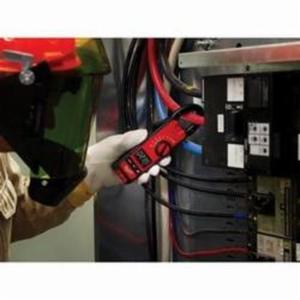

Thin jaw profile for easier wire measurement in panels or in bundles

True RMS for accurate measurement in all applications

Built-in voltage detector and LED work light

Thermocouple (dual banana) input for contact temperature measurement

Jaw profile for easier wire measurement in panels or in bundle

600 uA DC for flame rectification

High contrast, white on black display with backlight for easy reading

Rugged 26 ga galvanized steel construction housing

Alkaline battery, peak hold type, dial switch type, capacitance

High contrast white on black display

AC current range - 0 to 600 A with accuracy of (+/-2%rdg+/-5digit) at 50/60 Hz, peak 1500 A with accuracy of (+/-3.5%rdg+/-5digit) at 40 to 400 Hz, CF equals to 2.5 at 600 A, add 2% at CF> 2 , CF equals 3 at 500 A, <=5 A, add 3digit, 0 to 600 A with accuracy of (+/-1.5%rdg+/-5digit) at 50/60 Hz and (+/-3.5%rdg+/-5digit) at 40 to 400 Hz

Resistance range - 600 Ohm/6 kOhm with accuracy (+/-1%rdg+/-5dgt)

AC voltage range - 0 - 600 V with accuracy of (+/-1.5%rdg+/-4dgt) at 50/60Hz and (+/-3.5%rdg+/-5dgt) at 40 - 400Hz

DC voltage range - 60/600 V with accuracy of +/-(1%rdg+/-3dgts)

Package Quantity-1

Package Description-1/PK

UPC-045242173778

Package Height-2.09 in

Package Length-14.96 in

Package Volume-

Package Width-7.48 in

Package Weight-1.44 lb

Manufacturer Name-Milwaukee Tool

Manufacturer Part Number:2237-20NST

Brand Name-Milwaukee®

Standards/Approvals-

Warranty-5 Years
