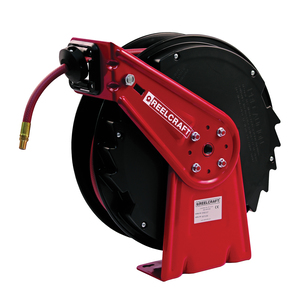

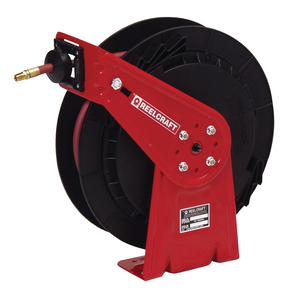

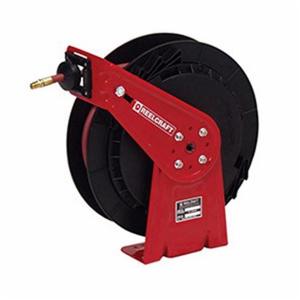

RT650-OLP SPRING DRIVEN 3/8" RED HOSE 50' REEL

Item#: HT1-RERT650OLP

Reelcraft® RT650-OLP RT Series Low Pressure Medium Duty Hose Reel With Hose, 3/8 in ID x 3/5 in OD x 50 ft L Hose, 300 psi Pressure, 16-1/2 in Dia x 2-1/4 in W Reel, Domestic
$Call for Pricing

Features

Features

Nylon material with excellent resistance to impact fracture even at low temperatures below 32 deg F

Lighter weight design

More open design around the swivel and hose opening allows more space for removing and attaching hose to the reel

Steel guide arm and base are stamped with ribs and gussets to insure maximum strength and lightest possible weight

Full flow stress free swivel design - full flow swivel combines the highest grade seal design and materials with bearing areas to insure maximum service life

Hose is plumbed into the base to eliminate the risk of undue stress on the swivel

Declutching arbor eliminates reverse spring winding and torsions latch spring is virtually unbreakable

High quality spring steel is used and conditioned to insure there are no imperfections offering maximum service life

Individually powder coated components along with the composite spool offers the maximum protection from premature corrosion

1/2 in female NPTF inlet

1/4 in male NPTF outlet

150 deg F maximum temperature rating
